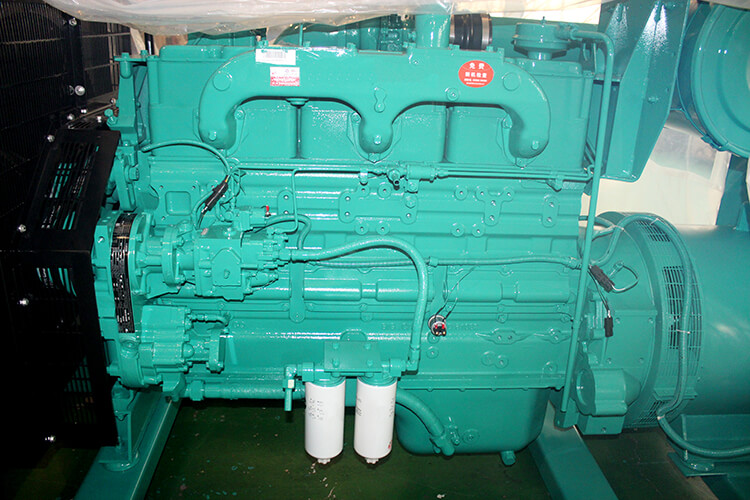

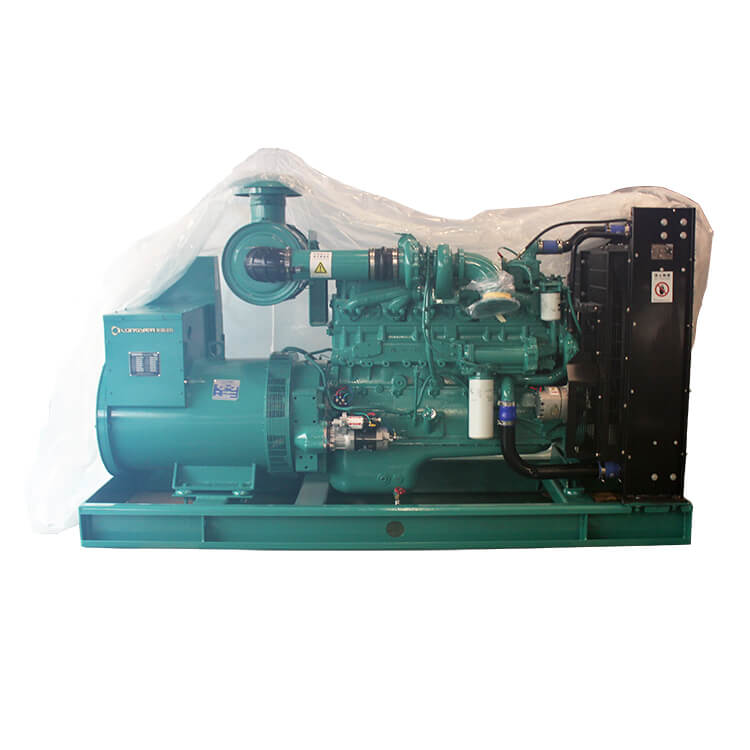

LS220G Cummins NT855-GA 220KW 275KVA Generator Set



Detailed Product Information

Product Description

Briefly describe what the form is for or provide additional context if required. Use inviting language. Briefly describe what the form is for or provide additional context if required. Use inviting language. Briefly describe what the form is for or provide additional context if required. Use inviting language. Briefly describe what the form is for or provide additional context if required. Use inviting language. Briefly describe what the form is for or provide additional context if required. Use inviting language. Briefly describe what the form is for or provide additional context if required. Use inviting language.

Main Features

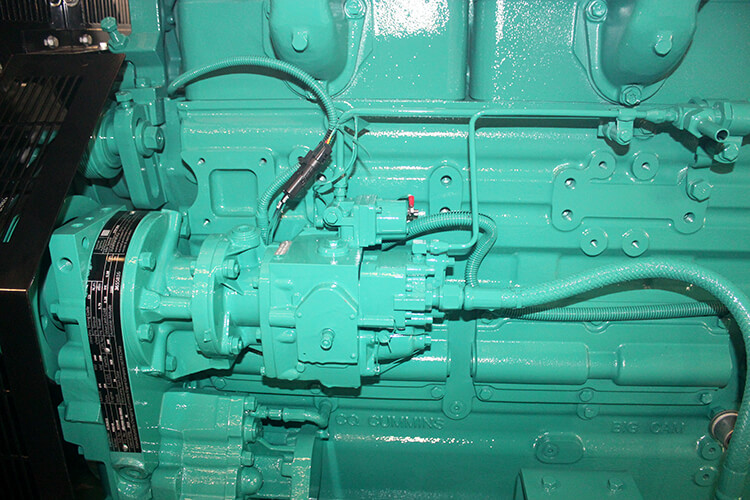

  • PT Fuel System – uses the time-tested and proven PT fuel system for high performance and ease of maintenance.  PT injectors are built to handle high pressures for optimum combustion.
  • Fillet-Hardened Crankshaft – smaller bolt circle and rolled threads for strength and durability
  • Cummins Prelub System – Distributes and pressurizes oil in the engine before cranking can occur, and is proven to greatly extend life-to-rebuild.
  • Galley-cooled pistons – reduced piston crown temperatures by as much as 100°F (38°C) for enhanced durability, reduced piston ring wear and 30% longer cylinder life.
  • Turbochargers – Custom-built for K Series engines and are available in single-stage or two-stage configurations to meet any application’s requirement.

Generator Specification

Generator ModelLS220G
Engine ModelNT855-GA
Rated speed1500rpm
Fuel Consumption(L/h)41
Prime Power200KW/250KVA
Standby Power220KW/275KVA
Length(mm)2900
Width(mm)1000
Height(mm)1750
Net Weight(kg)2350

Standard Generator Set List

Generator ModelEngine ModelStandby PowerPrime PowerSpeed   Fuel Consumption
kWkVAkWkVArpmL/h
LS36G4BT3.9-G2364532401500 8
LS140G6CTA8.3-G21401751201501500 30
LS160G6CTA8.3-G21602001401751800 36
LS220GNT855-GA2202752002501500 41
LS250GNTA855-G1A2503132202751500 55
LS280GNTA855-G12803502503131800 61
LS280GMTAA11-G32803502503131500 61
LS300GNTA855-G1B3003752753441800 68
LS300GNTA855-G2A3003752753441500 68
LS400GKTA19-G24005003604501800 85
LS400GKTA19-G34005003604501500 85
LS450GKTA19-G3A4505634005001500 98
LS450GKTA19-G34505634005001800 98
LS450GKTA19-G44505634005001500 98
LS550GKTAA19-G55506884705881800 117
LS660GKTA38-G26608386007501500 147
LS710GKTA38-G2B7108886408001500 160
LS880GKTA38-G5880110080010001500 200
LS1100GKTA50-G311001375100012501500 245
LS1100GQSK38-G51150143896012001800 240
LS1320GKTA50-G813201650110013751500 294
LS1320GKTA50-GS813201650120015001500 300

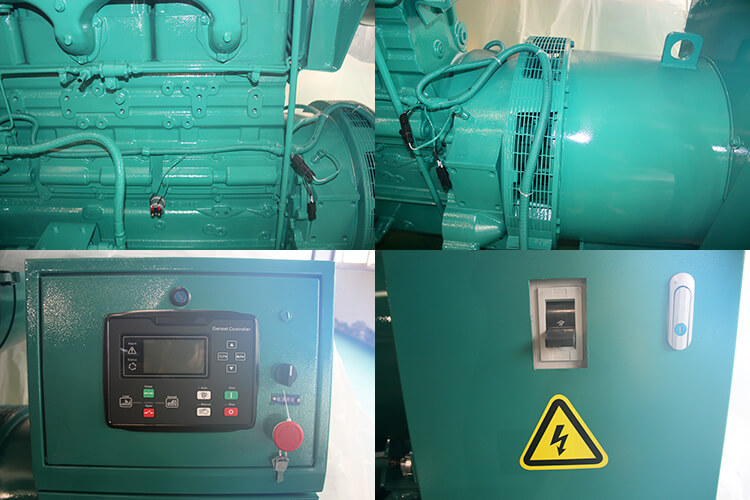

Alternator and Controller
